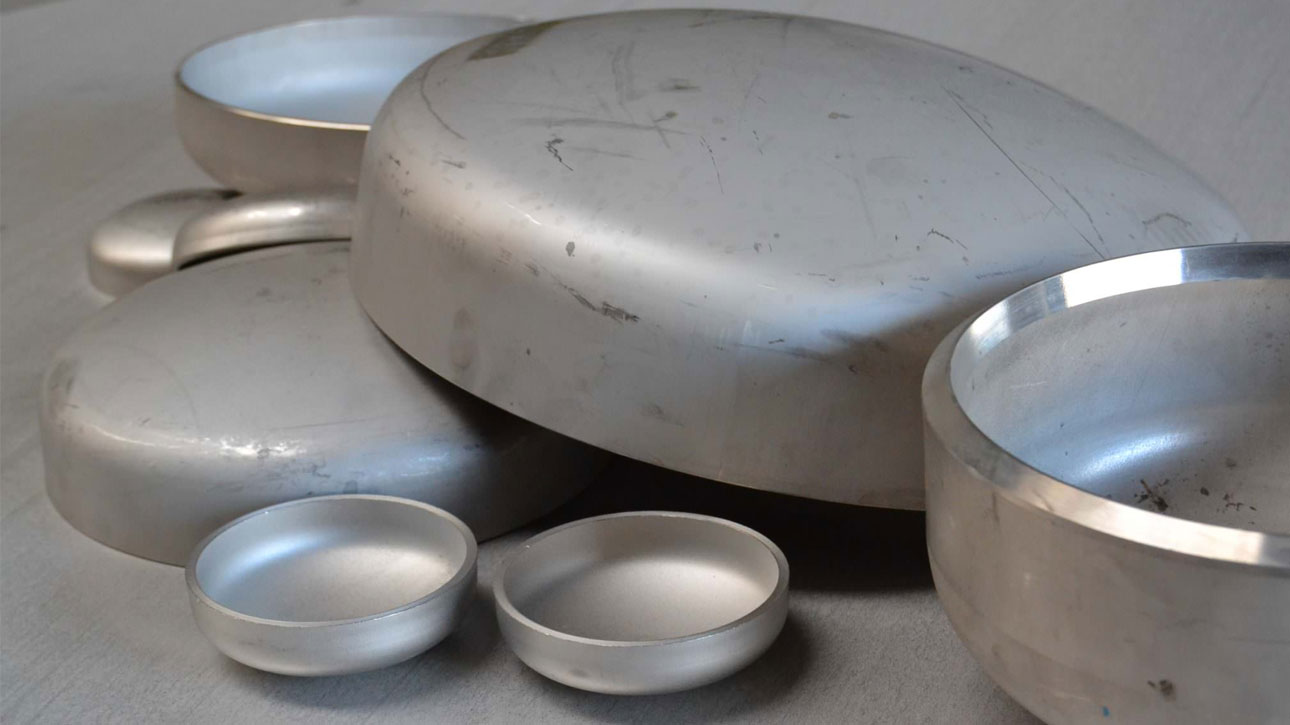

PIPE END CAPS – ROUND, OVAL
MANUFACTURER/EXPORTER IN INDIA | ASME/ANSI B16.9, ANSI B16.28, MSS-SP-43
CARBON, ALLOY, STAINLESS STEEL PIPE CAPS
Steel Pipe Caps are the pipe fittings, which are mainly used as a plug to
cover the end of a pipe. We can manufacture and supply
pipe end caps in standard sizes, as well as in
accordance with specification of our customers.
Various grades of pipe caps manufactured by Platinex Piping Solutions includes
304/304L, 316/316L, 321, 347, 317L, 310S, 904L, Duplex, Alloy 201, Alloy
800H, Alloy C276, Cupro Nickel, Alloy 400, Alloy 625 and Alloy 600. Our
stocking program includes stainless steel pipe caps and carbon steel pipe
caps of standard sizes and grades. Our specialty is to offer our customers
with pipe caps in various shapes –
round, square, rectangular or other special shapes.
Specifications
| Outside Diameter:
|
1/2″ – 48″ |
| Wall Thickness:
|
2-40 mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS,
SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Value Added
Services: |
Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish,
Sand Blasting, Threading, Soldering |
| Production Grades:
|
Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low
temperature Steel, Carbon Steel, Cupro Nickel |
Manufacturing Standards
| ASME: |
ANSI B16.9, ANSI B16.28, MSS-SP-43 |
| DIN: |
DIN2605, DIN2615, DIN2616, DIN2617, DIN28011 |
| EN: |
EN10253-1, EN10253-2 |
| ASTM A403 – ASME
SA403 |
Standard Specification for Wrought Austenitic Stainless Steel
Piping Fittings |
| ASME B16.9 |
Factory-Made Wrought Fittings Buttwelding |
| ASME B16.25 |
Buttwelding Ends |
| ASME B16.28 |
Wrought Steel Short Radius Elbows and Buttwelding Returns |
| MSS SP-43 |
Wrought and Fabricated Butt-Welding Fittings for Low Pressure,
Corrosion Resistant Applications |
Pipe Cap Material Grades
| Stainless Steel Pipe
Cap |
ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347,
904L |
| Carbon Steel Pipe
Cap |
ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY
65 & WPHY 70. |
| Low Temperature Carbon
Steel Pipe Cap |
ASTM A420 WPL3, A420 WPL6 |
| Alloy Steel Pipe
Cap |
ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22,
WP 91 |
| Duplex Pipe Cap
|
ASTM A 815, ASME SA 815 UNS NO S31803, S32205. Werkstoff No.
1.4462 |
| Nickel Alloy Pipe
Cap |
ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201
), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS
8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL
601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 )
|
