ASME/ANSI B16.5 THREADED PIPE FLANGES MANUFACTURER IN INDIA MANUFACTURER/EXPORTER OF HIGH QUALITY THREADED FORGED FLANGES CARBON, ALLOY, STAINLESS STEEL THREADED/SCREWED FLANGES
Platinex Piping Solutions LLP is a specialised manufacturer of high
quality ASME/ANSI/DIN standard threaded flanges or screwed flanges in India. We
offer immediate delivery programs for standard size of carbon steel threaded
flanges and stainless steel threaded flanges.

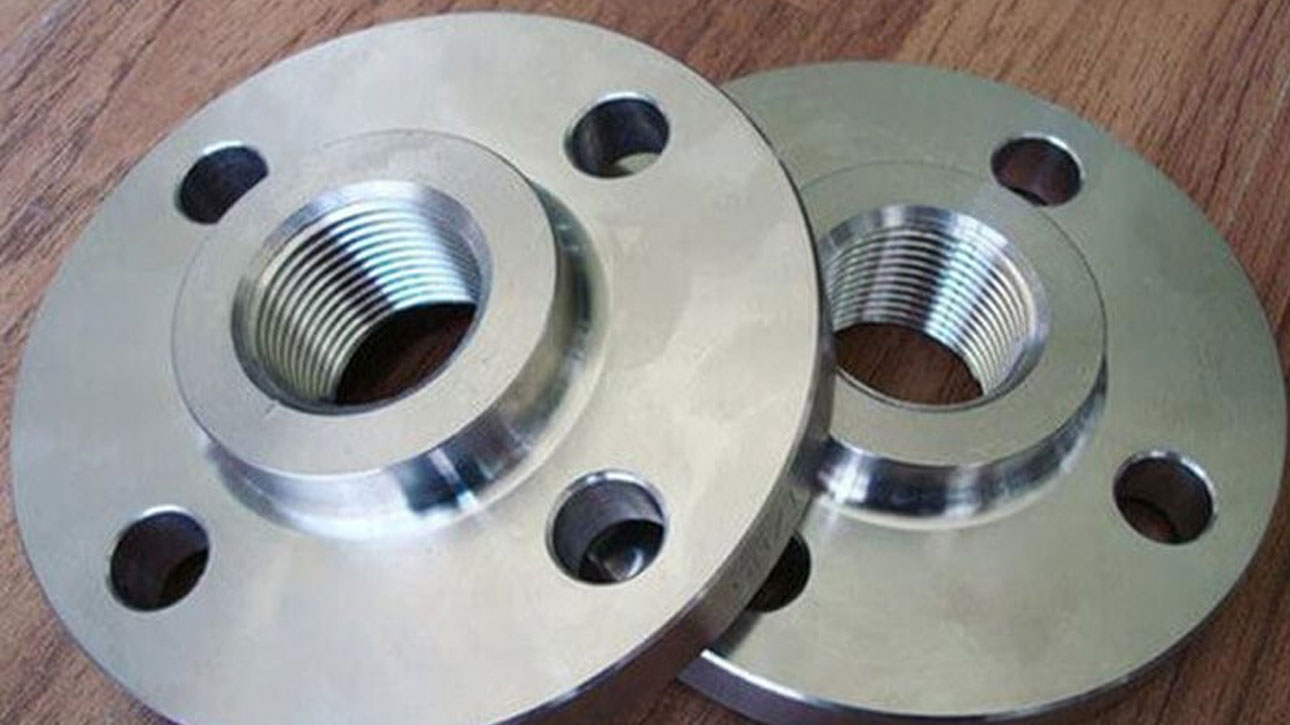

Threaded flanges are widely used in low pressure piping systems, as no welding
is involved while connecting the flanges to pipes or other equipment. However,
the flange may be welded around the joint after assembly, but it is not
considered a satisfactory method of increasing its applications. Threaded
flanges are also known as screwed flanges and are similar to slip-on flanges,
but the bore is threaded to enable assembling without welding. Threaded pipe
flanges are usually used with pipes that have external threads.
We offer threaded pipe flanges manufactured at our facility to companies in various industries including shipbuilding, power generation, petrochemical plants, oil refineries, waste water treatment plants, paper mills, pharmaceutical plants and turnkey projects among others.
Specifications
| Size | 1/2″ (15 NB) to 48″ (1200NB) |
| Standards | ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings |
| Pressure Ratings | Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 | PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Carbon Steel Threaded Flanges | ASTM A105/A105N, A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2, A694 F42, F46, F48, F50, F52, F56, F60, F65, F70, A516.60, 65, 70 (Spectacle Blind Flange, Spacer Ring/Spade Flange), Steel RST37.2, C22.8 |
| Stainless Steel Threaded Flanges | ASTM A182 F202, F304/304L/304H, F316/316L, F316H, F316TI, F310, F321, F904L |
| Alloy Steel Threaded Flanges | ASTM A182 F1, F5, F9, F11, F22, F91 |
| Special Alloy Threaded Flanges | Duplex, Super Duplex, Nickel Alloys |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Coating/Surface Treatment | Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized |
| Value Added Services | CNC Machining, Customised Flanges |
Technical Information – Specifications, Dimensions Threaded/Screwed Flanges
- ANSI/ASME B16.5 Threaded Flange/Screwed Flange 150lb
- ANSI/ASME B16.5 Threaded Flange/Screwed Flange 300lb
- ANSI-ASME B16.5 Threaded Flange, Screwed Flange 400lb
- ANSI/ASME B16.5 Threaded Flange/Screwed Flange 600lb
- ANSI/ASME B16.5 Threaded Flange/Screwed Flange 900lb
- ANSI/ASME B16.5 Threaded Flange/Screwed Flange 1500lb
- ANSI/ASME B16.5 Threaded Flange/Screwed Flange 2500lb
